The CAD template has been updated and supplemented.
New features:
- all* glass widths per side 0.25 mm narrower (total -0.5 mm), for better accommodation of glass tolerances
- Details added: Sky-Frame 3(2) Inline = double insulating glass in SF3
- Sill Original small: Note that with more than 4 tracks the base profile must be completely underfilled and that the planning information in the (new) assembly instructions must be observed.
- Note on minimum floor height, recommendation: plan 20 mm more so that there is no less than 140/145mm.
- many small improvements
*affected systems: Sky-Frame 1-3; ALL glass widths; Exception: PIVOT

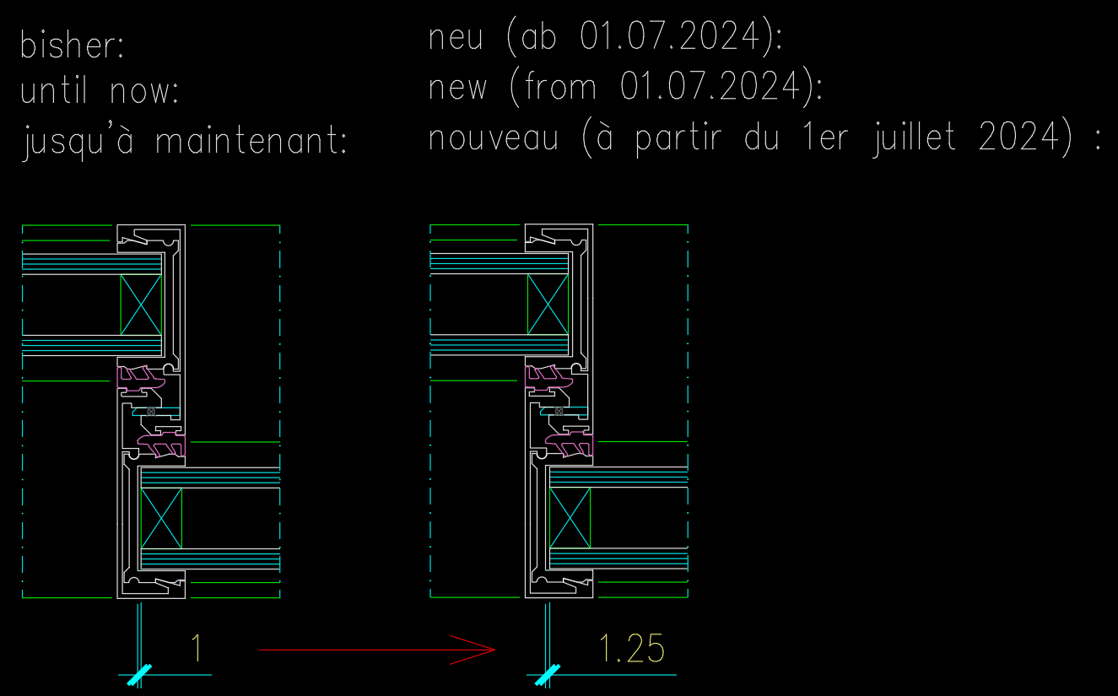

Glass widths unteil now / new:

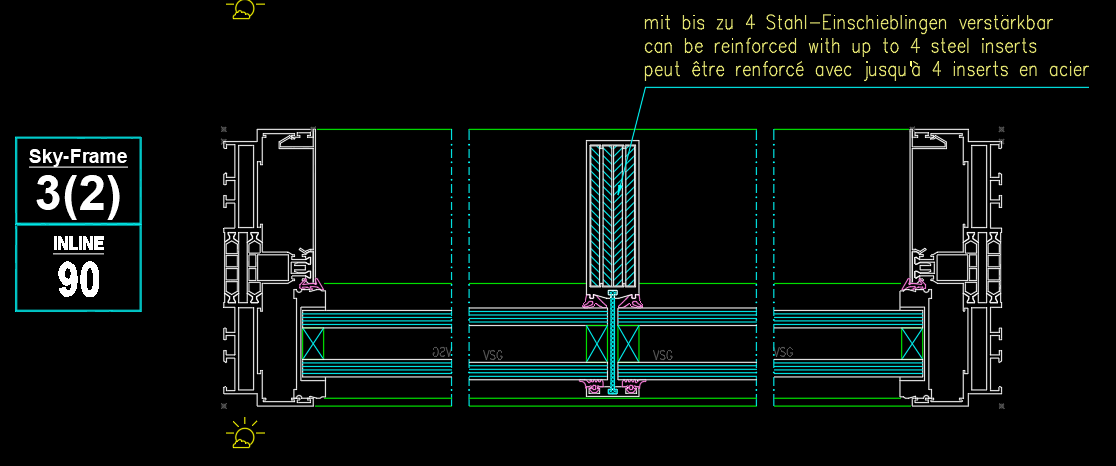

Sky-Frame 3(2) Inline:
%20Inline.png?width=1116&height=466&name=SF3(2)%20Inline.png)

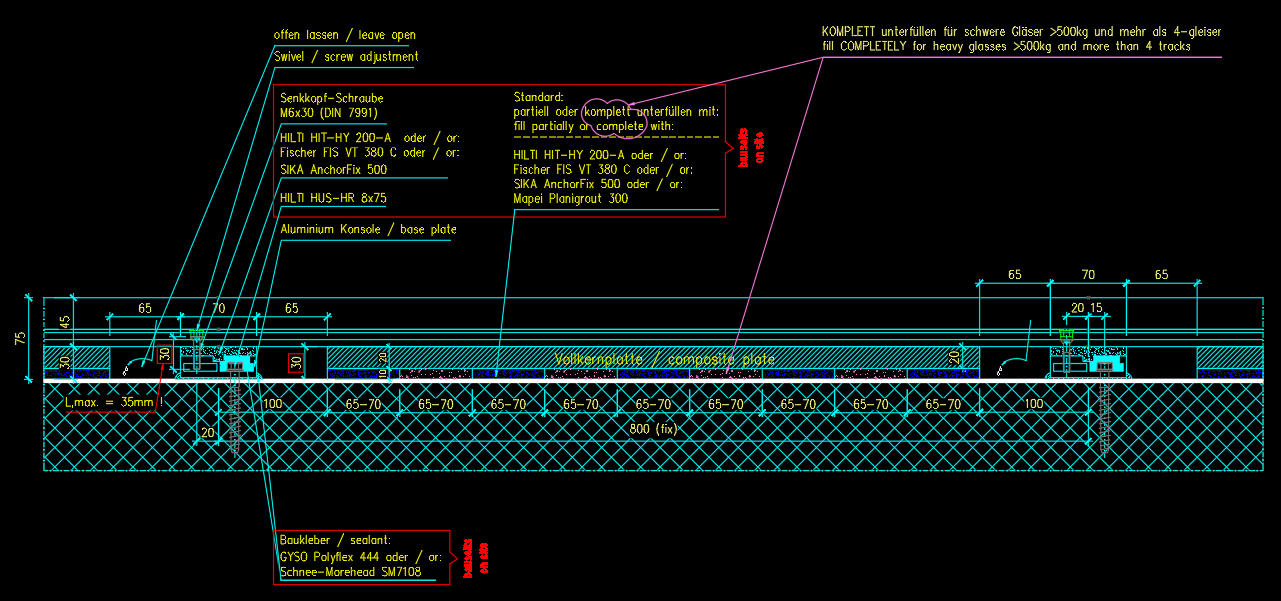

"Sill Original small" - Notes:

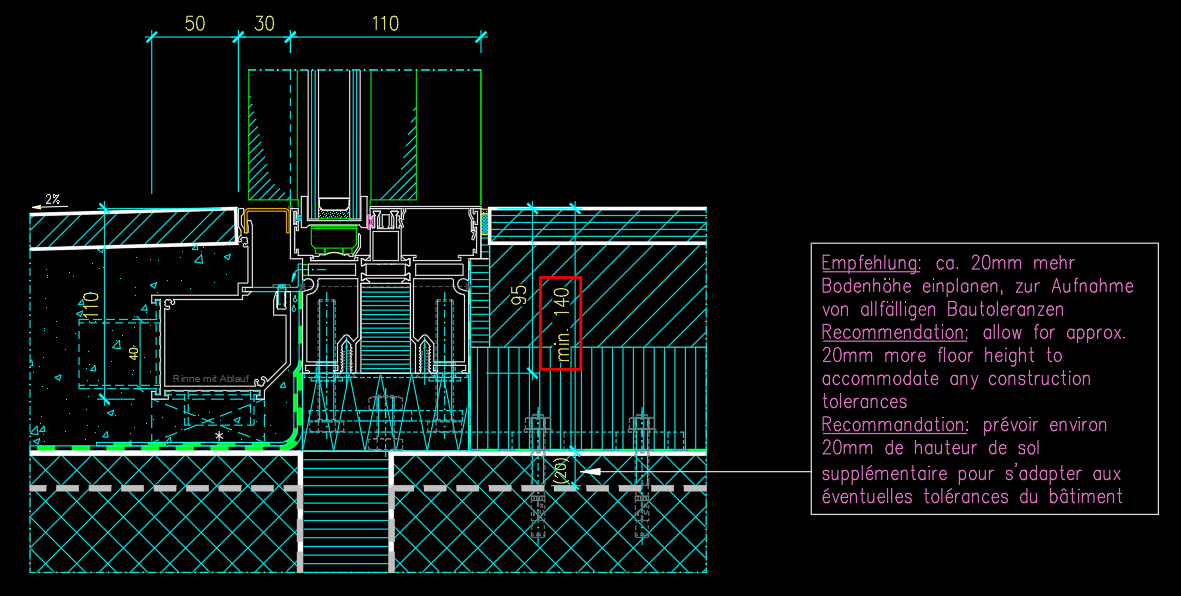

Note on minimum floor height:
The new CAD template is available from the official Sky-Frame homepage or directly here:
→ Sky-Frame - CAD template (2024-07-01)
